TECHNICAL SPECIFICATIONS

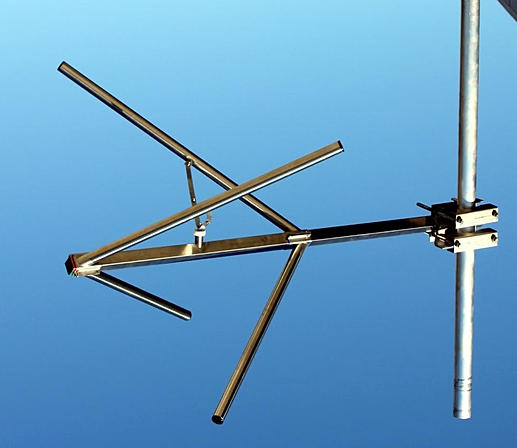

Antenna type: circular
polarization: dipole
Front-to-back ratio: 3 dB
Frequency range: 87.5 - 108 MHz
Lightening protection: all parts grounded
Bandwidth: 20 MHz
Max wind velocity: 120 mph (190 km/h)
Impedance: 50 ohms
Wind load: 53 Lbs (24 kg)
Connectors: N type (1 kw) -7/8 type / 7/16DIN(2 kw)
Wind surface: 1.1 ft2 (0.10 m2)
Power rating: 2000 Watts max
Materials (external): stainless steel
VSWR: < 1.3
Mounting: from 2" to 4"
Polarization: vertical and horizontal
Weight: 25 Lbs (11.3 kg)
Gain: - 3 dBd (referred to half-wave dipole)
Dimensions: 58"×32"×32" (1450×800×800mm)
H plane: omnidirectional ±1.5 dB (with a 4" mast)
V plane: omnidirectional ±3 dB (with a 4" mast)
Packing: 68"×10"×10"
